Nyong Coin
Description
- Download file: link
1
2
3
4
5
'Kim' is the CEO of a cryptocurrency exchange 'A'.
He asked the management team for the full transaction history of 'NYONG coin' traded in a specific period.
And here is 'Lee', a member of the management team who hates 'Kim', delivered a maliciously manipulated transaction history to 'Kim' in a USB.
Analyze the USB and find one manipulated transaction in there!
Flag: ACSC{lowercase(MANIPULATED_TRANSACTION_ID)}
Solution
Brief (2 ways)
1. Using tools
- Using
Autopsyto identify and carve deletedxlsxfile from image file. - The deleted file will be similar to 1 file in the main space -> identify that.
- Text diff 2 files to find the differences. The difference row is the answer
2. Using knowledge
- History to data inserted is preserved in
xl/sharedStrings.xml(no log formatted strings such asdate, currency, scientific, etc.) PhoneticPrattribute is used to provide a phonetic hint for a string, only generate when data is typed, not Copy&Paste
Details
1. Using tools
The downloaded file has a E01 extensions, which indicates an image dump from NetWitness.
1
2
$ file NyongCoin.E01
NyongCoin.E01: EWF/Expert Witness/EnCase image file format
These file can be viewed and analysed using tools like FTK Imager, Autopsy or ProDiscover.
In my case, I noticed hex data of a xlsx file in the unallocated space in FTK Imager but decided not to carve the file out (outstanding move 🤡). Therefore I didn’t finnish the challlenge.
To solve the challenge (or any other image forensics challenges), best use tools is Autopsy.

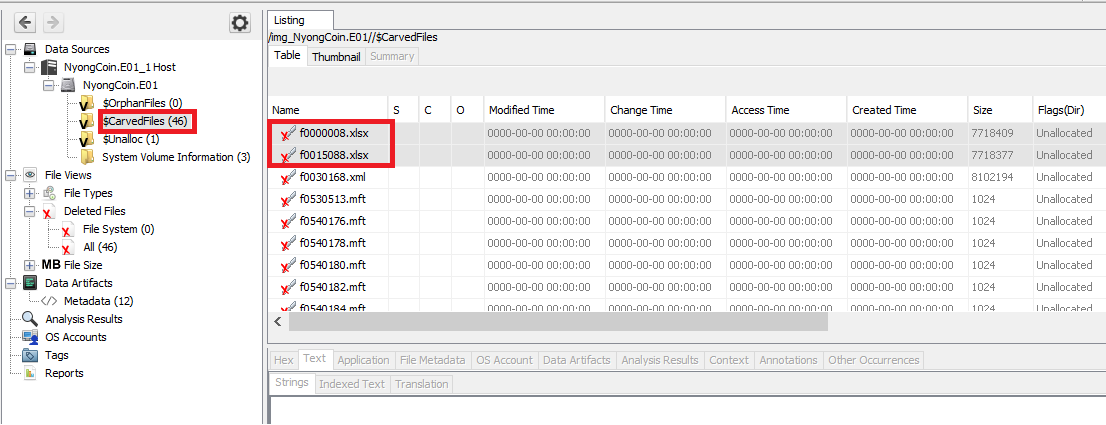

- After import image to
autopsy, go to CarvedFiles then export xlsx files (the data in 2 files are the same so take 1 file only).
Identify the original file by checking the fist row data of every files.

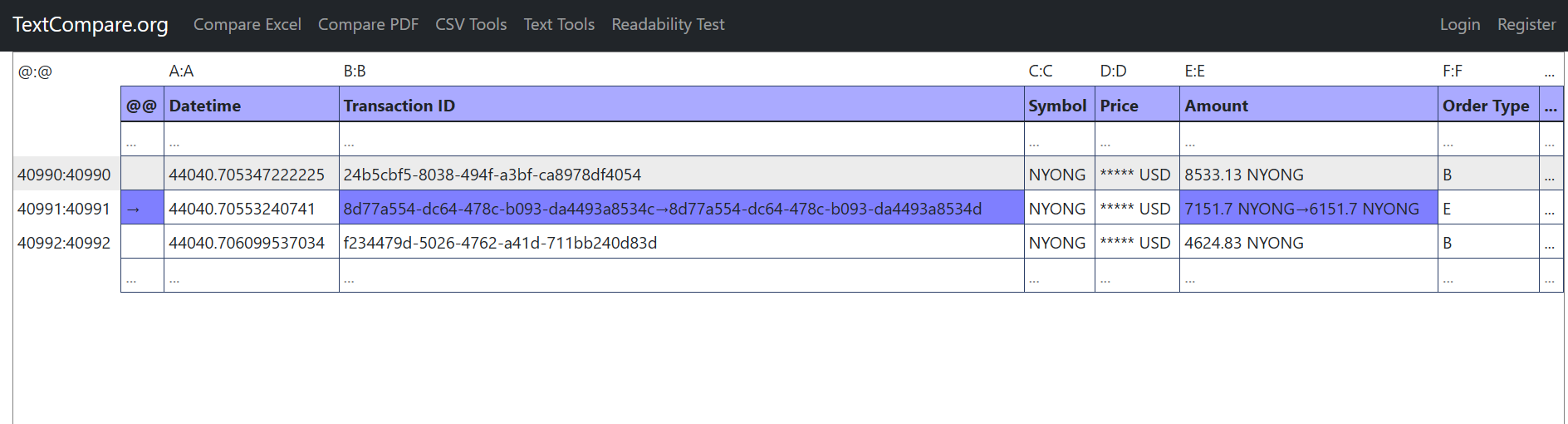

Go to TextCompare.org, upload the exported file (carved file) and the original file and then compare.
The answer is: 8d77a554-dc64-478c-b093-da4493a8534d
Flag: ACSC{8d77a554-dc64-478c-b093-da4493a8534d}
2. Using knowledge
- Extract all xlsx file as zip to a folder then Grep
PhoneticPrin all sharedString.xml files.
1
2
$ for file in `find . -name sharedStrings.xml`;do grep -Hoi "phoneticPr" $file;done
./20200715132932_20200816181652/xl/sharedStrings.xml:phoneticPr
- Finding the id (you can just view in text editor):
1
2
$ grep -Eo "phoneticPr.*$" ./20200715132932_20200816181652/xl/sharedStrings.xml
phoneticPr fontId="1" type="noConversion"/></si><si><t>8d77a554-dc64-478c-b093-da4493a8534d</t><phoneticPr fontId="1" type="noConversion"/></si></sst>
BitLocker Artifact
Description
- Download file: link
1
2
3
4
5
6
7
Get the datetime that C drive was encrypted by BitLocker!
Start: When the BitLocker Wizard was run (UTC+0, YYYY-MM-DD_HH:MM:SS)
End: When encryption was completed by BitLocker (UTC+0, YYYY-MM-DD_HH:MM:SS)
Flag: ACSC{Start_End}
ex: ACSC{2021-05-06_12:00:01_2021-05-06_12:53:11}
Solution
Brief
The target is to identify the start and end timestamp of Bitlocker in registry hives.
Refer to this tweet, to view the timestamp, we need to go to \SYSTEM\CurrentControlSet\Control\FVEStats\.
The start time is OsvEncryptInit and end time gonna be OsvEncryptComplete.
Details
To view the registry, use Registry Viewer of AccessData or Registry Explorer/RECmd of ericzimmerman.

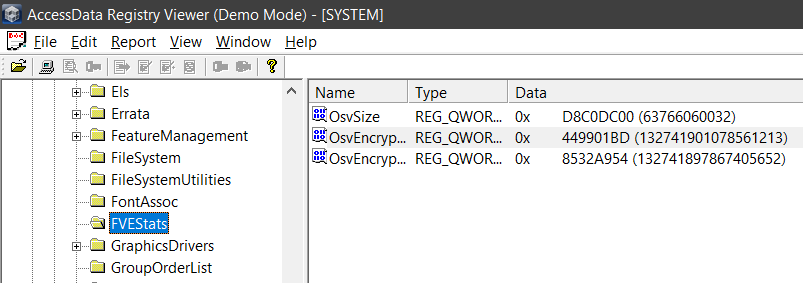

Open SYSTEM file in the tool (In my case it’s Registry Viewer). Locate to \SYSTEM\ControlSet001\Control\FVEStats\
- Start time: 132741897867405652
- End time: 132741901078561213
To convert windows timestamp to UTC time
PS C:\> [datetime]::FromFileTimeUTC("132741897867405652")
Monday, August 23, 2021 10:56:26 AM
PS C:\> [datetime]::FromFileTimeUTC("132741901078561213")
Monday, August 23, 2021 11:01:47 AM
